DATA ACQUISITION  -  PXI Based Instruments

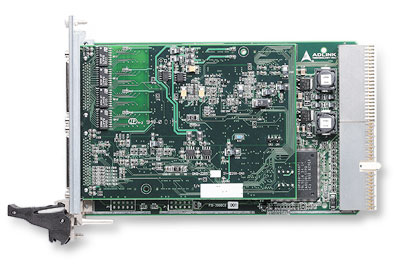

PXI-2200 Series
64-CH 12/16-Bit Up to 3 MS/s Multi-Function PXI Modules

ADLINK PXI-2204, PXI-2205, and PXI-2206 are high-density, high-performance multifunction PXI modules. These devices can sample up to 64 AI channels with various gain settings and scan sequences---making them ideal for high-density analog signals with various input ranges and sampling speeds. These devices also offer a differential mode for 32 AI channels to achieve maximum noise elimination. The PXI-2200 series also features analog and digital triggering, 2-CH 12-bit analog outputs with waveform generation capabilities, 24-CH programmable digital I/O lines, and 2-CH 16-bit general-purpose timers/counters.

Features:

• PXI specifications Rev. 2.0 compliant
• 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R3.0)
• 64-CH single-ended or 32-CH differential analog inputs
• Up to 3 MS/s sampling rate (PXI-2204)
• 12-bit A/D resolution (PXI-2204)
• 16-bit A/D resolution (PXI-2205 and PXI-2206)
• On-board 1k-sample A/D FIFO
• Bipolar or unipolar analog input ranges
