DATA ACQUISITION  -  PXI Based Instruments

PXI-9820
2-CH 65 MS/s 14-Bit Digitizer with SDRAM

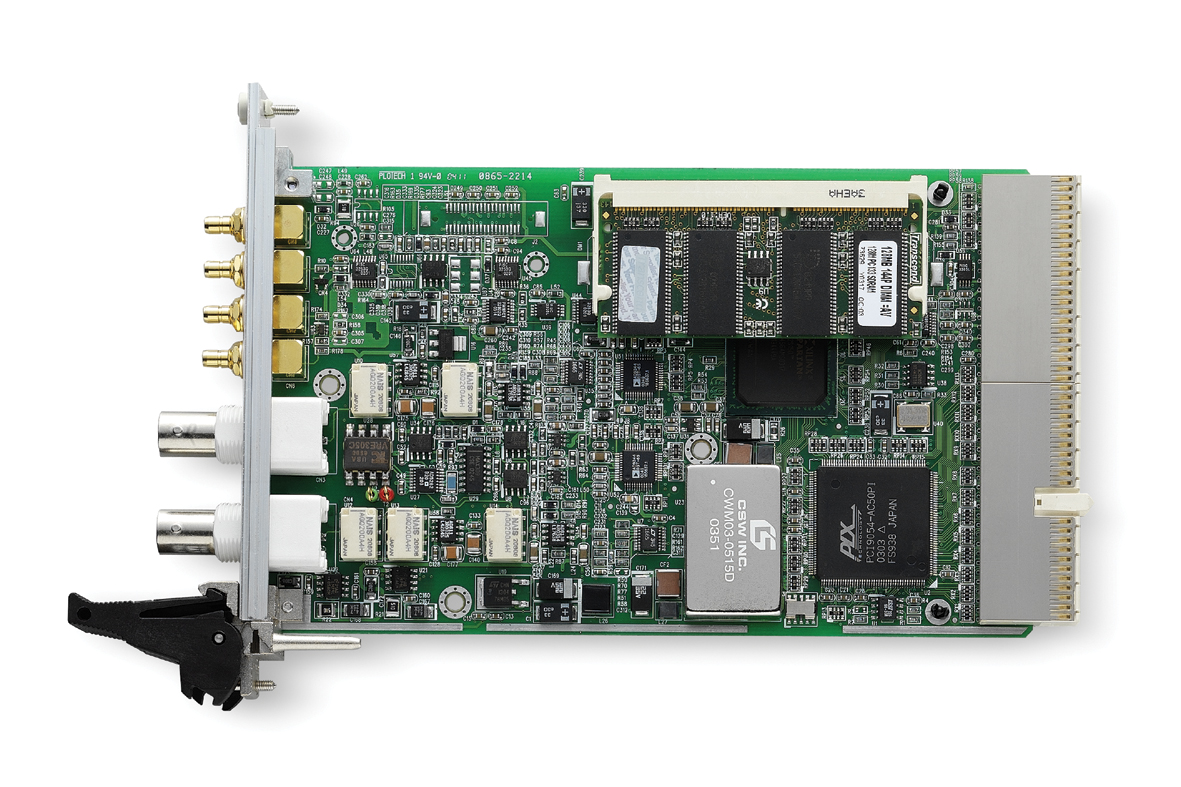

ADLINK PXI-9820 is a 65 MS/s, high-resolution PXI digitizer with deep SODIMM SDRAM memory. The device features flexible input configurations, including programmable input ranges and user-selectable input impedance. With the deep on-board acquisition memory, the PXI-9820 is not limited by the 132 MB/s bandwidth of PCI bus and can record the waveform for a long period of time. The PXI-9820 is ideal for high-speed waveform capturing, such as radar and ultrasound applications, as well as software radio applications, or those signal digitizing applications which need deep memory for data storage.

Features:

  • PXI Specification Rev. 2.1 compliant
  • 14-bit A/D resolution
  • Up to 60MS/s sampling rate per channel with internal timebase
  • Up to 130MS/s sampling rate in ping pong mode
  • 2-CH simultaneous-sampled single-ended analog inputs
  • >30MHz -3dB bandwidth
  • Up to 512MB on-board SODIMM SDRAM
  • 2-CH synchronous digital inputs

Ordering Information

PXI-9820

 2-CH 65 MS/s 14-Bit Digitizer with SDRAM

Associated Software

WD-OCX V1.0 ActiveX Controls for ADLINK PCI/PXI-9820 High Speed Digitizer
