DATA ACQUISITION - PXI Based Instruments

TE-5201
100MS/s Arbitrary Waveform Generator

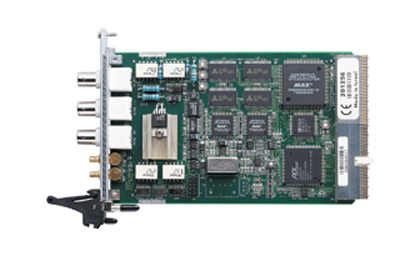

The TE5201 is a 100MS/s, full performance, arbitrary waveform generator on a 3U PXI form factor. The single channel AWG generates waveforms with up to 2 MS in length. Clock in/clock out connector provides a synchronized platform for up to six plug-in arbitrary generators, as well as for other plug-in instruments. Built in sequencing technology links up to 4096 memory segments and repeats each segment up to 32k times.

Features:

100 MS/s clock
10 digits resolution
Multiple instrument synchronization
14-bit vertical resolution
2 MS memory depth
Ultra fast waveform downloads using DMA
Low phase noise carrier
Internal trigger generation

Ordering Information

TE-5201

100MS/s Arbitrary Waveform Generator
