DATA ACQUISITION   -  PXI / CompactPCI Cards

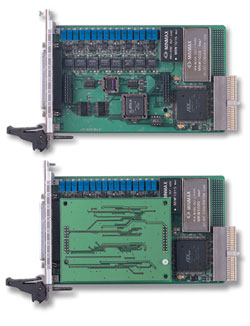

cPCI-6208/6216 Series
8/16-CH 16-Bit Analog Output Modules

Features:

  • PICMG 2.0 Rev 2.1
  • 16-bit D/A resolution
  • 16-CH voltage on 6216V
  • 8-CH voltage outputs on 6208A and 6208V
  • 8-CH current outputs on 6208A
  • Bipolar analog output range
  • 4-CH TTL DI and 4-CH TTL DO
  • Rear I/O available

Ordering Information

cPCI-6208/6216 Series

 8/16-CH 16-Bit Analog Output Modules

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards


Download Area:


click on arrow
 to download

 Driver Utility BIOS Associated Software Manual Datasheet
