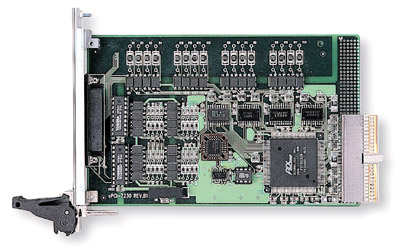

cPCI-7230
16-CH Isolated DI & 16-CH Isolated DO Module

Features:

  • PICMG 2.0 Rev 2.1
  • 16-CH Isolated DI, 16-CH Isolated DO
  • 5000VRMS optical isolation
  • Sink current up to 500mA on each isolated output
  • Isolated input voltage up to 24V
  • Two external interrupt sources

Ordering Information

cPCI-7230

 16-CH Isolated DI & 16-CH Isolated DO Module

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards


Download Area:


click on arrow
 to download

 Driver Utility BIOS Associated Software Manual Datasheet
