DATA ACQUISITION   -  PXI / CompactPCI Cards

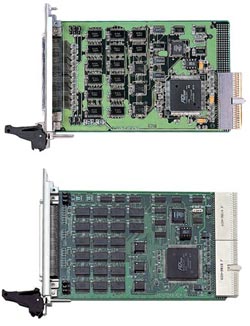

cPCI-7248/7249R
48-CH DIO & Timer/Counter Modules

Features:

  • PICMG 2.0 Rev 2.1
  • 48-CH digital TTL/DTL input/output
  • Emulates 4/2/1 industry standard 8255 PPI (mode 0)
  • Direct interface with OPTO-22 compatible I/O modules Output port status read back
  • On board 8254 timer/counter chip
  • Programmable interrupt source
  • Provides 12V and 5V power supply to OPTO-22 connectors

Ordering Information

cPCI-7248/7249R

 48-CH DIO & Timer/Counter Modules

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
