DATA ACQUISITION   -  PXI / CompactPCI Cards

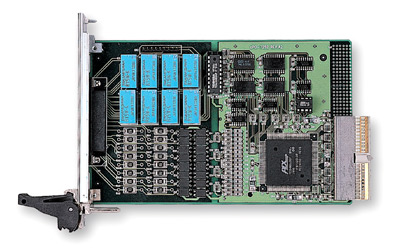

cPCI-7252
8-CH Relay Outputs & 16-CH Isolated DI Module

Features:

  • PICMG 2.0 Rev 2.1
  • 8-CH SPDT relays
  • Non-latching relays
  • On-board relay driving circuits
  • Relay output status read back
  • 16-CH isolated DI
  • On-board low-pass filtering for DI
  • Two external interrupt sources

Ordering Information

cPCI-7252

 8-CH Relay Outputs & 16-CH Isolated DI Module

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
