DATA ACQUISITION   -  PXI / CompactPCI Cards

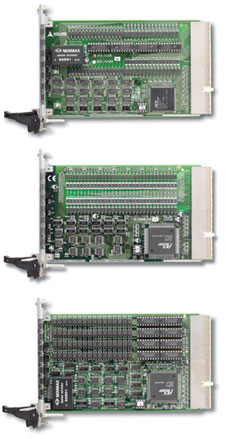

cPCI-7432/7433/7434
64-CH Isolated Digital I/O Modules

Features:

  • PICMG 2.0 Rev 2.1
  • 32-CH isolated DI & 32-CH isolated DO on cPCI-7432
  • 64-CH isolated DI on cPCI-7433
  • 64-CH isolated DO on cPCI-7434
  • 5000VRMS
  • Sink current up to 500mA on each isolated output
  • Rear I/O available on cPCI-7432R, 7433R, 7434R

Ordering Information

cPCI-7432/7433/7434

 64-CH Isolated Digital I/O Modules

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
