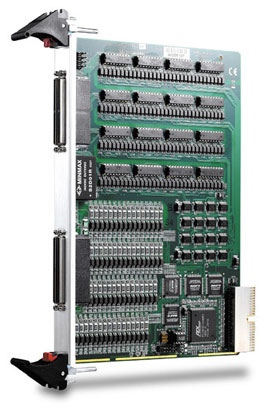

cPCI-7452
128-CH Isolated DI & 128-CH Isolated DO Module

The ADLINK cPCI-7452 is a 256-CH extra-high-density digital input and output card. It provides a robust 2,500VRMS isolation protection, suitable for most industrial applications. The wide input range of the cPCI-7452 makes it easy to sense the status of external devices. The cPCI-7452 also features a wide output range from 5 to 35V, suitable for driving relays and use in industrial automation applications. The cPCI-7452 provides sink drive outputs. The cPCI-7452 provides Change-of-State interrupt on all digital input channels, simplifying configuration and management.

Features:

  • 6U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R2.1)
  • 128-CH isolated digital inputs and 128-CH isolated digital outputs
  • Non-polarity digital input range
  • Isolated input voltage up to 28V
  • Output supply voltage from 5V to 35V
  • Isolation voltage up to 2,500VRMS
  • Sink current up to 500mA on each isolated output
  • Interrupt sources: 128-CH DI Change-of-State
    •

Ordering Information

cPCI-7452

 128-CH Isolated DI & 128-CH Isolated DO Module

Associated Software

DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
