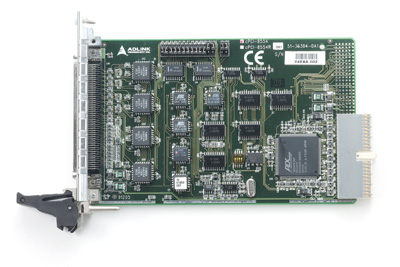

cPCI-8554 Series
12-CH 16-Bit Timer/Counter & Digital I/O Modules

Features:

  • PICMG 2.0 Rev 3.0
  • Four 82C54 programmable timer/counter chips
  • Up to 12-CH 16-bit timer/counter
  • 1-CH 32-bit cascaded timer based on 8 MHz clock source
  • Four programmable clock sources for each timer/counter
  • Programmable de-bounce filters for external clock & external interrupt inputs

Ordering Information

cPCI-8554 Series

 12-CH 16-Bit Timer/Counter & Digital I/O Modules

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
