DATA ACQUISITION   -  PXI / CompactPCI Cards

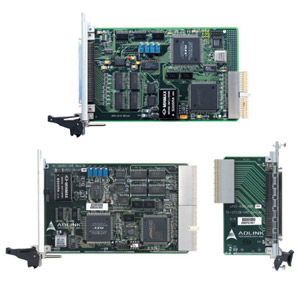

cPCI-9116 Series
64-CH 16-Bit 250k S/s Multi-Function DAQ Modules

Features:

  • PICMG 2.0 Rev 2.1
  • 16-bit A/D and sampling rate up to 250kS/s
  • 64-CH single-ended or 32-CH differential input
  • On-board 1k-sample A/D FIFO
  • Programmable gains of x1, x2, x4, x8
  • 512-configuration channel-gain queue
  • Bus-mastering DMA for analog inputs
  • Rear I/O available on cPCI-9116R
    •

Ordering Information

cPCI-9116 Series

 64-CH 16-Bit 250k S/s Multi-Function DAQ Modules

Associated Software

DAQBench English V2.42

 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
D2K-OCX V1.01 ActiveX Controls for ADLINK DAQ2000 Series of Data Acquisition Cards
DAQ-LVIEW PnP 1.25 V1.25,LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
D2K-VEE V1.12 VEE™ Interface
DAQ-MTLB V1.01 V1.01,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
DAQCreator Evaluation V1.0 Smart & Easy-to-Use Data Acquisition System Creator
