DATA ACQUISITION - Wiring Termination Boards

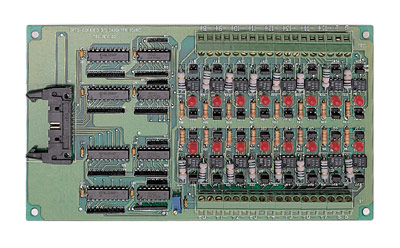

ACLD-9182A
Termination Board with 16-CH Isolated Digital Inputs

Features:

16-CH opto-isolated digital inputs
For use with 20-pin ribbon digital input connector of NuDAQ cards
Non-polarity digital input range
Isolated input voltage up to 24 V
5000 VRMS optical isolation
Jumper selectable for voltage input or dry-contact input mode
LED indicator for input status
Screw terminals for easy field wiring

Ordering Information

ACLD-9182A

Termination Board with 16-CH Isolated Digital Inputs
