DATA ACQUISITION - Wiring Termination Boards

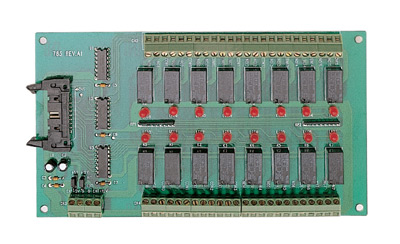

ACLD-9185
Termination Board with 16-CH Relay Outputs

Features:

16-CH single-pole, double-throw (SPDT form C) relay outputs
For use with 20-pin digital input connector of NuDAQ cards
Maximum switching voltage up to 60VDC/120VAC
Maximum switching current up to 1A DC/AC
On-board relay driver circuitry
LED indicators for relay status
Screw terminals for easy field wiring

Ordering Information

ACLD-9185

Termination Board with 16-CH Relay Outputs
