DATA ACQUISITION - Wiring Termination Boards

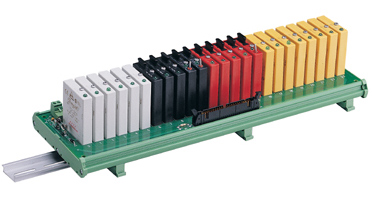

DIN-24G
Termination Board for 24-CH Grayhill I/O Modules

Features:

Supports standard or miniature G5 size modules
Termination board for installing Grayhill I/O modules
Up to 24 modules
Port configurable as input or output on 8-CH basis
Dimensions: 371 mm x 126 mm x 49 mm (WxLxH)

Ordering Information

DIN-24G

Termination Board for 24-CH Grayhill I/O Modules
