DATA ACQUISITION   -  Wiring Termination Boards

DIN-24R/TB-24R

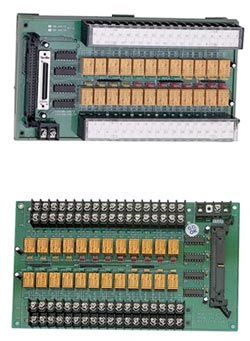

Termination Board with 24 Relay Outputs

Features:

  • 24-CH single-pole, double-throw (SPDT form C) relay outputs
  • 50-pin Opto-22™ compatible connector
  • Maximum switching voltage 220 VDC/250 VAC
  • Maximum switching current up to 2 ADC/AC
  • LED indicator for relay status
  • On-board relay driver circuitry
  • Screw terminals for easy filed wiring
  • DIN socket available on DIN-24R

Introduction

The DIN-24R and TB-24R relay output boards are designed for industrial control applications. It contains 24 electro-mechanical SPDT relays that can be driven by the 24-bit digital output ports of the PCI-7224, PCI-7248, PCI-7296, ACL-7112, ACL-7124 and PET-48DIO, ND-6058. Each relay's switching capacity is 60 W, 125 VA. The normally closed, and common contacts for each relay are made available for maximum flexibility.

Ordering Information

DIN-24R/TB-24R

 Termination Board with 24 Relay Outputs
