DATA ACQUISITION - Wiring Termination Boards

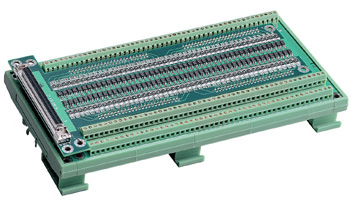

DIN-96DI
96-CH Isolated DI Termination Board with DIN-Rail Mounting

Features:

96-CH isolated digital inputs
For use with PCI-7396
Isolated input voltage up to 24 V
2500 VRMS optical isolation
Screw terminals for easy field wiring

Ordering Information

DIN-96DI

96-CH Isolated DI Termination Board with DIN-Rail Mounting
