DATA ACQUISITION - Wiring Termination Boards

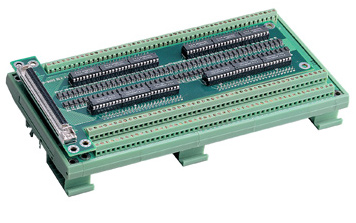

DIN-96DO
96-CH Isolated DO Termination Board with DIN-Rail Mounting

Features:

96-CH isolated digital outputs
For use with PCI-7396
Sink current up to 500 mA on each isolated output
2500 VRMS optical isolation
Screw terminals for easy field wiring

Ordering Information

DIN-96DO

96-CH Isolated DO Termination Board with DIN-Rail Mounting
