DATA ACQUISITION - Wiring Termination Boards

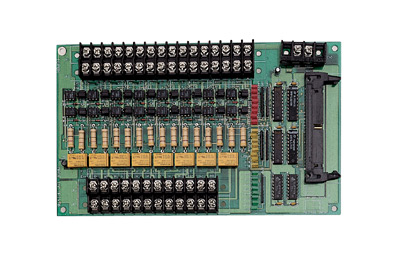

TB-16P8R
Termination Board with 16-CH Isolated DI & 8-CH Relay Outputs

Features:

16-CH isolated digital inputs
Non-polarity digital input range
Isolated input voltage up to 24 V
5000 VRMS optical isolation
Jumper selectable for voltage input or dry-contact input mode
8-CH single-pole double-throw (SPDT form C) relays
Maximum switching voltage 220 VDC/250 VAC
Maximum switching current up to 2 ADC/AC

Ordering Information

TB-16P8R

Termination Board with 16-CH Isolated DI & 8-CH Relay Outputs

Download Area:

click on arrow to download	Driver	Utility	BIOS	Associated Software	Manual	Datasheet
click on arrow to download
