MOTION & VISION - Motion Control Products

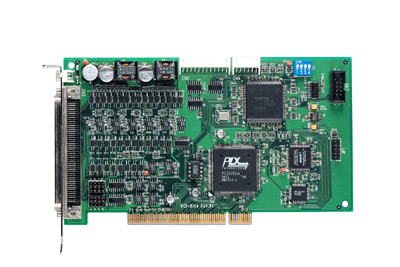

PXI-8164/PCI-8164
Advanced 4-axis Stepping & Servo Motion Control Card

Features:

Pulse output rate up to 6.55MHz

Pulse output options: OUT/DIR, CW/CCW

2~4 axes linear interpolation

2-axis circular interpolation

Multi-axis continuous interpolation

Position/speed change on-the-fly

13 home return modes and auto home search

Hardware position compare and trigger with auto-loading FIFO

Ordering Information

PXI-8164/PCI-8164

Advanced 4-axis Stepping & Servo Motion Control Card

Download Area:

click on arrow to download	Driver	Utility	BIOS	Others	Manual	Datasheet
