Mark Inspection Kit


Easy Bar Code
Product identification, Bar code verification, automatic symbology identification and detection

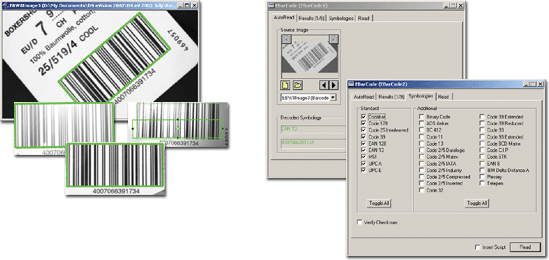

EasyBarCode is a library dedicated to automatically locate and read bar codes. Bar codes encode short character string and are widely used for marking and identifying goods. EasyBarCode is able to identify and read a wide range of standard commonly used symbologies as well as additional symbologies.

EasyBarCode automatically locates the bar code symbol in the image. Moreover, for prototyping or special cases, an advanced manual location mode is also available.

Supported symbologies:

  Standard symbologies:
  Code 128 Codabar MSI
  Code 39 Code 2/5 5 Interleaved UPC A
  EAN 128 EAN 13 UPC E
  Additional symbologies:
  Code 32 Plessey Code 2/5 5 Bars IATA
  Code 39 Extended Telepen Code 2/5 5 Bars Industry
  Code 39 Reduced ADS Anker Code 2/5 5 Bars Compressed
  Code 412 SEMI Binary code Code 2/5 5 Bars Inverted
  Code 93 Code 11 Code BCD Matrix
  Code 93 Extended Code 13 Code C.I.P.
  Code STK Code 2/5 3 Bars Datalogic Ean 8
  IBM Delta Distance A Code 2/5 3 Bars Matrix






















Bar code translation, rotation and scaling support
Automatic compensation of illumination changes
Direct contrast (black on white) and inverse contrast (white on black) support
Checksum validation
