Picolo Series
Color/Monochrome Image Acquisition Cards

Introduction

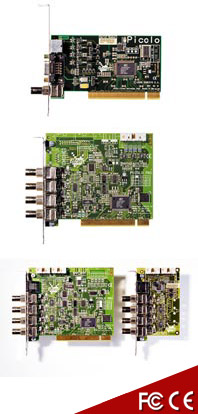

General Picolo: The Picolo is a low-cost frame grabber card ideal single camera applications. It provides a robust BNC connector, an S-video connector and a DB-9 connector for video input and I/O connections. Picolo Pro2: The Picolo Pro2 is a cost effective frame grabber card optimized for video surveillance applications. The synchronization stage, PCI management hardware and the MultiCam driver have been optimized to allow high-speed acquisition of full-resolution images from multiple unsynchronized cameras. The Picolo Pro2 provides 4 BNC connectors (video input) allowing connection of up to four cameras. Picolo Pro3: The Picolo Pro3 is able to acquire images from up to 16 cameras due to its modular architectural design. The Picolo Pro3 baseboard and each extension module (up to 3) provide 4 BNC and a CTL connector (with 5 TTL I/O lines).

Features:

• 32-bit, PCI bus image acquisition card
• Low-cost
• Applicable signal type: PAL/NTSC/CCIR/EIA
• Acquisition from 1 to 16 standard cameras
• Full resolution and high quality image acquisition
• Libraries, ActiveX controls and DLLs included
