REMOTE I/O MODULES - HSL

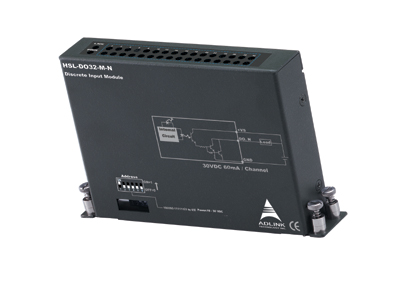

HSL-DO32-M-N/-P
32-CH Discrete Output Module

Features:

Slave ID consumption: 2 consecutive from odd
32-CH digital output -N: NPN sinking type output -P: PNP sourcing type output
Switch capacity: Single channel 500mA; all channels 60mA at 24VDC
Photo couple isolation voltage: 2500Vrms
Response time: ON→OFF: 180µs, OFF→ON :1.2µs
LED indicator: Power, Link and Output status
Power supply: +10V to +30 VDC
Operating temperature: 0 to 60XC

Ordering Information

HSL-DO32-M-N/-P

32-CH Discrete Output Module
