REMOTE I/O MODULES   -  HSL

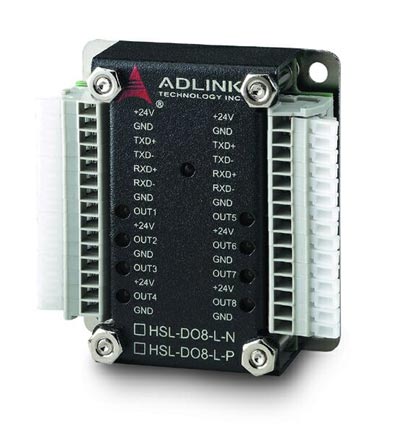

HSL-DO8-L-N/-P
8-CH Low-Profile Discrete Output Module


Introduction

ADLINK HSL-DO8-L-N/P is a distributed I/O control solution based on HSL network. With the low-profile design, it is especially suitable for limited space use. The clap connector can let users easily wire. LED indicates the I/O status and users can check it visually. With the HSL feature, it has 30.4gs real-time response at 6 Mbps. System integrators will benefit from this low-profile design to easily build up a local communication network.




Features:

  • Slave ID consumption: 1
  • Output response time: ON→OFF: 180µs,OFF→ON: 1.2µs
  • Output switching capacity: Single channel 500mA; all channels 60mA at 24VDC
  • Photo couple isolation voltage: 2500Vrms
  • Power Supply: +24V DC power
  • N: NPN sinking type output / P: PNP sourcing type output


Ordering Information

HSL-DO8-L-N/-P

 8-CH Low-Profile Discrete Output Module
