REMOTE I/O MODULES - HSL

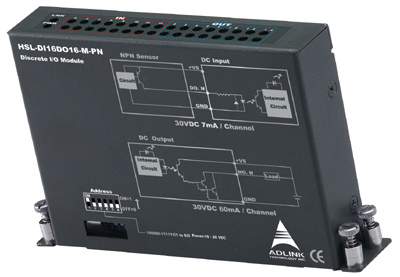

HSL-DI16DO16-M-NN/-NP/-PN/-PP
16-CH Discrete Input 16-CH Discrete Output Module

Features:

Slave ID consumption: 1
16-CH digital input and 16-CH digital output -NN: for NPN sinking type sensor input or dry contact and NPN sinking type output -
Photo couple isolation voltage: 2500Vrms
Input impedance: 4.7KΩ
Input current: ± 10mA(Max) , ± 12.5mA(Peak)
Input voltage: ± 40V (Max)
Output switching capacity: Single channel 500mA; all channels 60mA at 24VDC
Output response time: ON→OFF: 180µs,OFF→ON: 1.2µs

Ordering Information

HSL-DI16DO16-M-NN/-NP/-PN/-PP

16-CH Discrete Input 16-CH Discrete Output Module
