REMOTE I/O MODULES   -  HSL

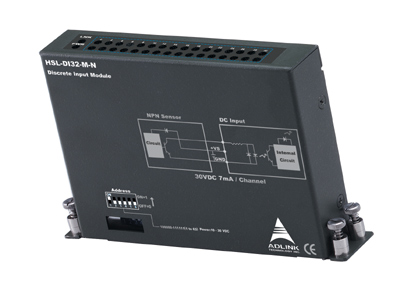

HSL-D132-M-N/-P
32-CH Discrete Input Module

Features:

• Slave ID consumption: 2 consecutive from odd
• 32-CH digital input -N: for NPN sinking type sensor or dry contact -P: for PNP sourcing type sensor or wet contact
• Photo couple isolation voltage: 2500Vrms
• Input impedance: 4.7KΩ
• Input current: ± 10mA(Max), ± 12.5mA(Peak)
• Input voltage: ± 40V (Max)
• LED Indicator: Power, Link and Input status
• Power Supply: +10V to +30VDC

Ordering Information
