REMOTE I/O MODULES
- HSL

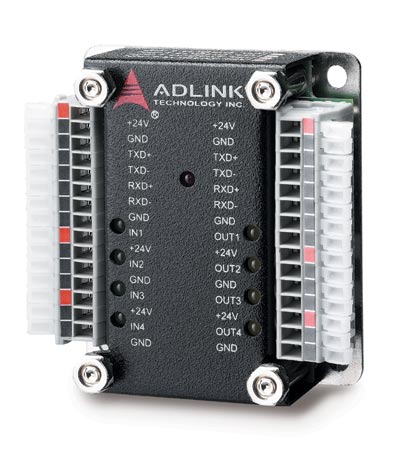

HSL-DI4DO4-L-NN/-PN/-NP/-PP
4-CH Low-Profile Discrete Input 4-CH Discrete Output Module
Introduction
High Speed Link 4-CH Low-Profile Discrete Input 4-CH Discrete
Output Module ADLINK HSL-DI4DO4-L-NN/PN/NP/PP is a distributed
I/O control solution based on HSL network. With the
low-profile design, it is especially suitable for limited
space use. The clap connector can let users easily wire. LED
indicates the I/O status and users can check it visually. With
the HSL feature, it has 30.4gs real-time response at 6 Mbps.
System integrators will benefit from this low-profile design
to easily build up a local communication network.
Features:
- Slave ID consumption: 1
- Input voltage: ±40V (Max)
- Input impedance: 4.7KΩ
- Input current: ±10mA(Max) , ±12.5mA(Peak)
- Output response time: ON→OFF: 180µs,OFF→ON: 1.2µs
- Output switching capacity: Single channel 500mA; all channels 60mA at 24VDC
- Power Supply: ±24V DC power
- HSL-DI4DO4-L-XY: X: NPN sinking or PNP sourcing input type / Y: NPN sinking or PNP sourcing output type
Ordering
Information
| HSL-DI4DO4-L-NN | Low-profile 4-CH discrete input & 4-CH discrete output Module with NPN input and NPN output |
| HSL-DI4DO4-L-NP | Low-profile 4-CH discrete input & 4-CH discrete output Module with NPN input and PNP output |
| HSL-DI4DO4-L-PN | Low-profile 4-CH discrete input & 4-CH discrete output Module with PNP input and NPN output |
| HSL-DI4DO4-L-PP | Low-profile 4-CH discrete input & 4-CH discrete output Module with PNP input and PNP output |
