REMOTE I/O MODULES   -  HSL

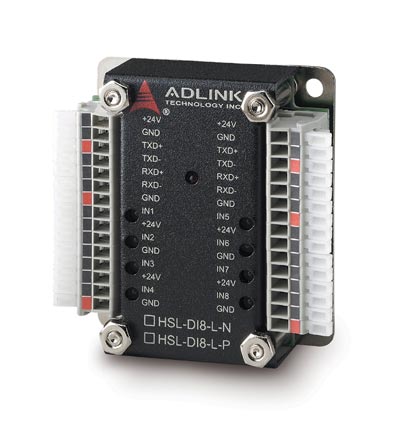

HSL-D18-L-N/-P
8-CH Low Profile Discrete Input Module


Introduction

ADLINK HSL-DI8-L-N/P is a distributed I/O control solution based on HSL network. With the low-profile design, it is especially suitable for limited space use. The clap connector can let users easily wire. LED indicates the I/O status and users can check it visually. With the HSL feature, it has 30.4gs real-time response at 6 Mbps. System integrators will benefit from this low-profile design to easily build up a local communication network.




Features:

  • Slave ID consumption: 1
  • Input voltage: ± 40V (Max)
  • Input impedance: 4.7KΩ
  • Input current: ± 10mA(Max) , ± 12.5mA(Peak)
  • Photo couple isolation voltage: 2500Vrms
  • N: for NPN sinking type sensor input or dry contact / P: for PNP sourcing type sensor input or wet contact
  • Power Supply: +24V DC power


Ordering Information

HSL-D18-L-N/-P

8-CH Low Profile Discrete Input Module
