REMOTE I/O MODULES - HSL

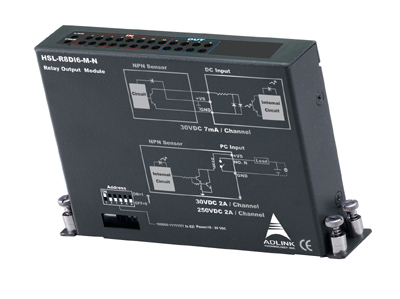

HSL-R8DI16-M-N/-P
8-CH Relay Output 16-CH Discrete Input Module

Features:

Slave ID consumption: 1
8-CH relay output and 16-CH digital input -N: for NPN sinking type sensor or dry contact -P: for PNP sourcing type sensor or wet
Photo couple isolation voltage: 2500Vrms
Input impedance: 4.7KΩ
Input current: ± 0mA(Max) , ± 2.5mA(Peak)
Input voltage: ± 0V (Max)
Relay rating: 30VDC / 2A, 250VAC / 2A
Relay switching frequency: Max. 20 times/minute at rating load

Ordering Information

HSL-R8DI16-M-N/-P

8-CH Relay Output 16-CH Discrete Input Module
