REMOTE I/O MODULES - HSL

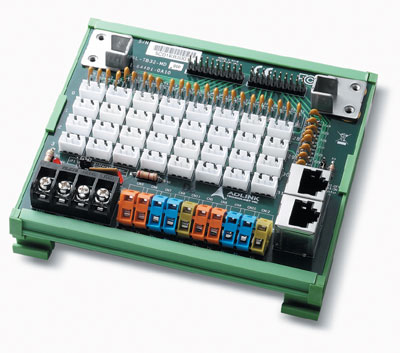

HSL-TB32-MD
32-CH Separate I/O Terminal Base

Introduction

The HSL-TB32-MD discrete I/O terminal bases provide reliable and convenient wiring for HSL-M series products. The separate connection can make it easy to wiring, and the separate fuse can protect each I/O point. This low cost terminal base is particularly useful for users who need convenient way to construct their own signal condition arrangement.

Features:

Separate I/O wiring connection for HSL I/O modules
Separate fuse protection for each I/O points
Support common/separate DC power supply
Interlocking design for rugged installation
Power LED indicator
DIN rail mounting
Terminator resistor on board
Power and ground included for each signal channel

Ordering Information

HSL-TB32-MD

32-CH Separate I/O Terminal Base
