REMOTE I/O MODULES - NUDAM
(REMOTE DATA ACQUISITION & CONTROL MODULES)

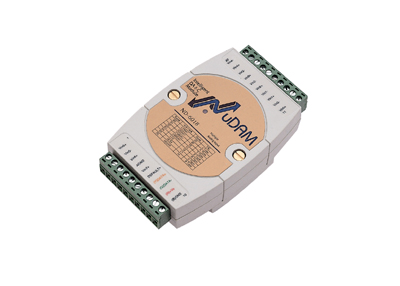

ND-6018
8-CH Thermocouple Input Module

Features:

Channels: 6 Differential & 2 Single-ended
Input Type: Thermocouple, mV, V and mA
Thermocouple Type: J, K, T, E, R, S, B, N,C
Voltage Range: ± 15 mV, ± 50 mV, ± 100 mV, ± 500 mV, ± 1 V, ± 2.5 V
Current Range: ± 20 mA
Isolation Voltage: 2500 VRMS

Ordering Information

ND-6018

8-CH Thermocouple Input Module

Associated Software

NDS-DLL6

NuDAM library for Windows95/98/NT/2000/XP

Download Area:

click on arrow to download	Driver	Utility	BIOS	Associated Software	Manual	Datasheet
click on arrow to download
