REMOTE I/O MODULES - NUDAM
(REMOTE DATA ACQUISITION & CONTROL MODULES)

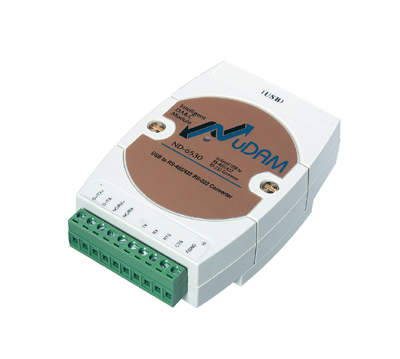

ND-6530
USB to RS-422/RS-485 Converter

Features:

Protocol (DIP switch selectable): RS-232 (5-wire: RXD, TXD, RTS, CTS, GND); RS-422 (4-wire: TX+, TX-, RX+, RX-); RS-485 (2-wire: Data+, Data-)
Speed: 300~115.2k bps
Isolation Voltage: 2500 VRMS
Fully USB compliant
Repeater request: Over 128 modules or distance over 4000 feet

Ordering Information

ND-6530

USB to RS-422/RS-485 Converter
